How to Complete In-Wall Wiring for a Home Theater?

The secret to a fantastic home theater is not the equipment you can see – it's hiding and organizing the cables. Hiding cables in the walls keeps your room organized, keeps cables out of reach of pets or accidents, and keeps everything working properly. Whether you're setting up a new system or fixing an existing one, this guide will show you how to hide cables safely, follow easy electrical rules, and put things in so that you can easily add new devices down the road – all without sacrificing your room's cleanliness and organization.

Step 1: Planning the Wiring Layout

Before starting the installation process, it's crucial to plan your home theater wiring layout carefully.

Assess Your Home Theater Setup

First, determine the placement of your home theater seating, then identify all the components that require wiring, such as:

• Speakers (surround sound, front, center, and subwoofer)
• Television or projector
• A/V receiver or amplifier
• Media players (e.g., Blu-ray player, streaming devices)
• Gaming consoles

Determine the optimal location for each component based on your room's layout and desired sound and viewing experience.

Create a Wiring Diagram

Next, create a wiring diagram to serve as a blueprint for the installation process:

• Sketch your room's layout, including walls, windows, and doorways.
• Mark the planned locations of your TV or projector, speakers, and other equipment.
• Draw the desired cable routes, considering the most efficient paths while avoiding potential obstacles.
• Measure the distances between components and along the cable paths to determine the required cable lengths.
• Label each cable in the diagram with its type (e.g., HDMI, speaker wire) and length.

Consider future upgrades or additional components by planning for extra cable runs or conduits to accommodate potential changes or additions to your home theater setup.

Step 2: Gathering Necessary Tools and Materials

Possessing the well-thought-out wiring pattern, it's time to acquire all the necessary tools and material you will work with during installation. This shall ensure that you work in unity and with good efficiency.

Tools You'll Need

Make sure you have the following tools ready:

• Power drill and bits: You will need to utilize a power drill to make holes in your walls and other places. Buy bits that match the type of wall material you are working with, e.g., drywall, wood, or masonry.
• Fish tape or wire puller: They help pull cables through walls and tight spaces without damaging the cables or walls.
• Stud finder: Use a stud finder to locate the framing within your walls. This will keep you from drilling through studs and run your cables between them without harm.
• Utility knife and measuring tape: A utility knife is perfect for scoring drywall, cutting cable jackets, and precise cuts. Don't leave home without a measuring tape to measure cable lengths and mark places to drill.

Materials for In-Wall Wiring

Besides the tools, you'll need these materials for your in-wall wiring project:

• In-wall rated cables: Select cables that are designed for wall use. They're fireproof and code-compliant for buildings. You'll need HDMI cables for video, speaker wires for audio, and power cables for your equipment.
• Wall plates and cable management covers: Wall plates give your cable outlets a neat, professional look. Cable coverings for management offer protection for concealment and maintaining your wires in a neat appearance.
• Conduit or raceway (if needed): Some local building regulations may require you to install your cables inside a conduit or raceway for added protection and organization. Check with your local authorities as to whether you will need to have this on your job or not.

Other Things to Consider

• Junction boxes: When you're installing outlets or junction points for your cables, you'll need in-wall rated junction boxes.
• Cable labels: It's a good practice to label your cables on both ends, so you'll save time and frustration later on when you're trying to locate and troubleshoot connections.

With all the materials and tools ready before you start, you'll be ready to finish your in-wall wiring project efficiently, without any interruptions or breaks.

Step 3: Preparing the Work Area

After you've got your materials and tools, the next step is to get your work area ready for in-wall wiring. This includes taking safety measures, making sure that you're compliant with local codes, and cutting and marking holes for your wall plates and cable paths.

Safety and Code Compliance

Safety always comes first. Before you start, go to your circuit breaker panel and turn off the power to the areas where you will be wiring. This simple step will protect you from electric shock and accidents while you work.

It's also necessary to refer to your local building codes to see if there are any regulations regarding in-wall wiring. Ensure your plans adhere to these codes, such as utilizing conduit or fire-resistant materials when necessary.

Marking and Cutting Cable Paths

Now that you have taken care of safety, you can move on to cable run marking. Using a stud finder, you can locate studs in walls on which to route cables. You can mark the studs using a pencil as you get the cable courses ready inside the studs.

Then, from your wiring diagram, label the cable paths on the wall. A level will help keep everything straight and your wall plates level.

Once you've marked where the wall plates will go, cut them out slowly with a drywall saw. Drill a pilot hole in the inside of the marked area first, then put the saw in and cut along your lines. Go slow so you won't damage any wires or pipes that might be behind the wall.

Step 4: Running the Cables Through Walls and Labeling Them

Drilling Holes in Wall Plates for Cable Access

For you to have a route for your cables, you might have to drill holes in the top and bottom plates of your walls. Make the holes slightly more than 1/4 inch smaller than the size of your cables so that they can easily pass through without weakening the structural component of your wall. Use a suitable drill bit according to the material you are drilling, and a flexible drill bit if you don't know where the utilities or obstructions lie in the wall.

Using a Fish Tape to Pull Cables Through Drilled Holes

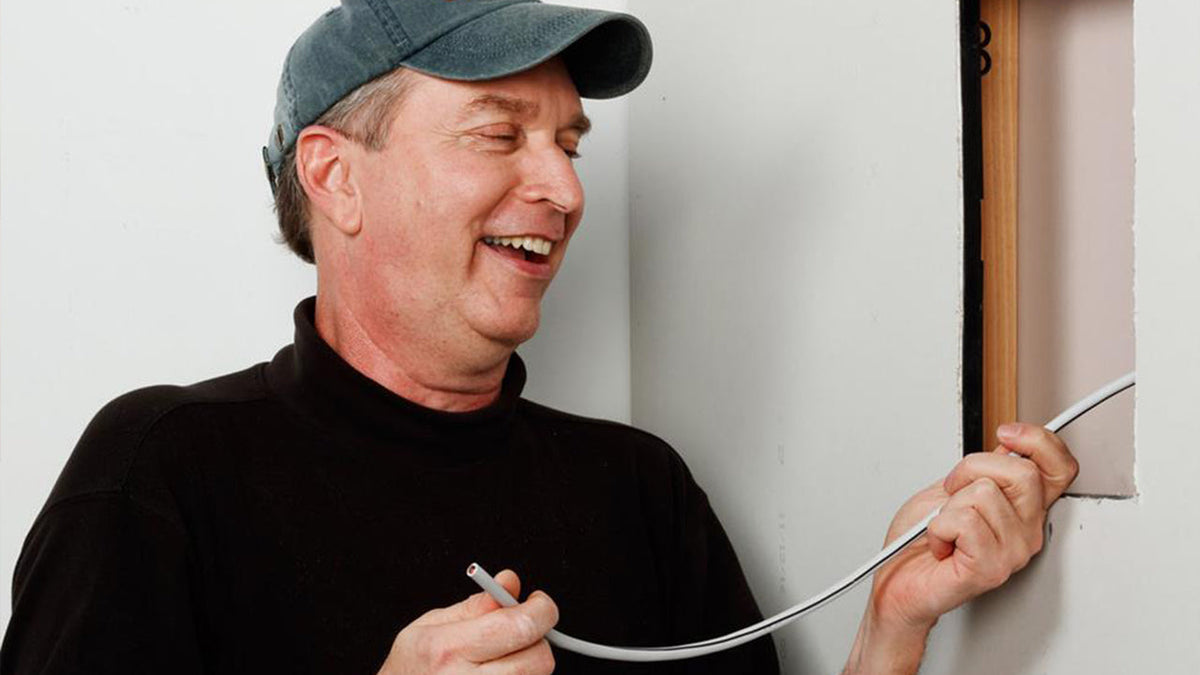

A fish tape is a slender steel wire of considerable length utilized in pulling cables through access holes that have been drilled. Feed the fish tape through one of the holes until it emerges on the other side, and then firmly hold your cables onto the fish tape by taping them with electrical tape or a cable pulling grip. Carefully pull the fish tape through the hole, pulling the cables along with it. If there is a lot of resistance, stop and investigate to prevent damaging the cables or walls.

Labeling Both Cable Ends for Easy Device Connection

When you tug all the cables, label both ends with cable tag or masking tape. Know the kind of cable and from where it starts and ends to save time and confusion while connecting your devices later. Use cable lubricant to prevent friction and tugging and try pulling many cables at a time and bind them with cable ties or tugging one cable at a time through a loop to prevent getting entangled. Be slow and patient not to make errors or damage anything.

Step 5: Installing Wall Plates and Connecting Devices

Securing Wall Plates to Cut Openings

With your cables now pulled in and labeled, you can now start installing wall plates. Utilize the wall plates that you purchased and install them over the openings you made earlier. Make sure cables are passing through the appropriate holes in the plates, and lastly secure the plates to the wall using the provided screws with a snug fit for a professional neat finish. If your wall plates have insertable inserts, snap them over cable holes.

Connecting Cables to Devices and Testing Functionality

After you have installed your wall plates, it is now easier to connect cables to their respective devices. To start with, examine the cables' ends according to what you have marked them as previously. Next, place each of the cables into its corresponding ports on your devices, for example, your receivers, speakers, television, or consoles. Make sure the ports fit tightly.

Once connecting all the cables, it's crucial to test your setup to ensure everything is working as intended. Turn on your devices and check for proper functionality, such as:

• Are video and audio signals being transmitted correctly?
• Are all speakers producing sound as expected?
• Are there any visible or audible signs of signal degradation or interference?

If you encounter issues, double-check your connections and make sure the cables are properly inserted both ends. You may also be asked to adjust your device settings, such as audio output or video resolution, for better performance.

Step 6: Finalizing the Installation

With wires routed and devices connected, direct your attention to polishing form as well as function. A meticulous finish makes your home theater go from functional to exceptional.

Concealing and Securing Cables

Even impeccably hidden wires may leave a trail around devices or along edges. Round up stragglers with discreet solutions: adhesive-backed clips hold cables to furniture legs, and braided sleeves group bundles behind media consoles. For particularly stubborn eyesores, paintable cable channels mounted along baseboards hide runs invisibly.

Install thin baseboard moldings—opt for screw-free, snap-on styles for easy access. This final layer of camouflage lends a gallery-like finish, distraction-free.

Reviewing and Adjusting the Setup

Start by testing with content that pushes your system hard: a film with thundering bass, crackling dialogue, and rapid scene changes. Listen for uneven audio dispersal—rear speakers overpowering fronts, or muddled dialogue—and watch for strobing displays or sound/image delays.

Refinements follow problems disclosed. Reposition speakers in small steps to balance acoustics; even a change of six inches can transform soundscapes. Replace HDMI cables if artifacts devastate video quality, and recalibrate display settings to suit room lighting. Chronic hums may require regrounding connections or shielding audio cables from electrical lines.

Enjoy Your Theater—Without the Wires in Sight!

You’ve mapped out routes, threaded cables safely through walls, and tucked every wire out of sight. Testing confirms sharp visuals and balanced sound—no distractions, just pure movie magic. Labeled connections make future upgrades simple, while hidden wires keep your space clean. Now sit back: your clutter-free home theater is ready for action.
